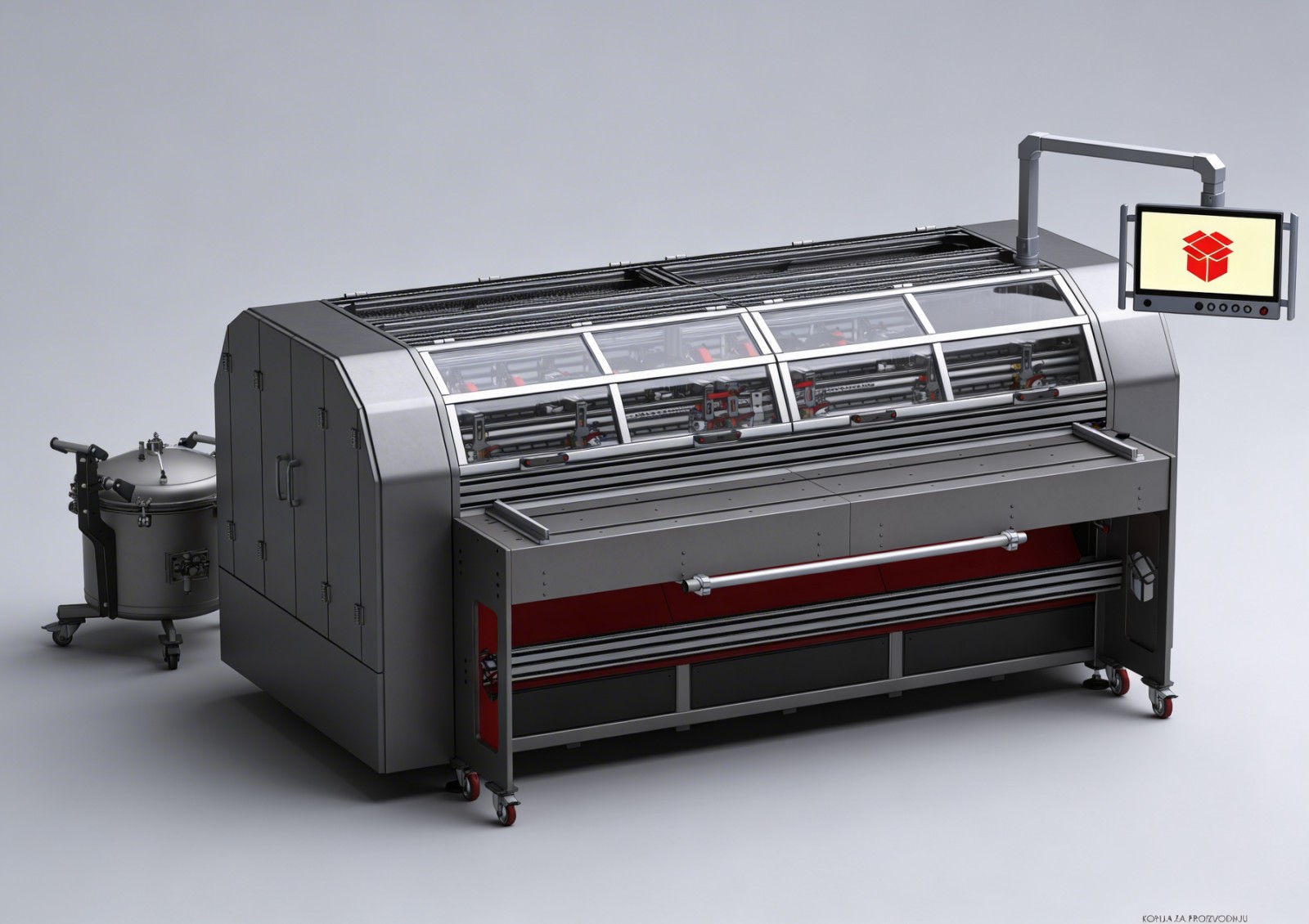

Boxmaker

Versatile solution for flexible box production-The semi-automatic DT-SERIES machine is designed for the production of various types of cardboard boxes, inserts, dividers, and die-cut elements made from corrugated board. It enables longitudinal and cross creasing and cutting, with optional additional glue unit,die-cutting and printing (e.g., filling openings or company logos).

Suitable for double-, triple-, and five-layer corrugated board, the DT-SERIES offers quick setup and easy operation through an intuitive touch-screen interface.
The operator simply enters the basic parameters, while the software automatically calculates the required values and displays all tool positions (knives, creasing wheels, printing units). The machine allows a rapid format change in just a few minutes.

Ideal for small and medium production runs, test samples, and quick model adjustments, the DT-SERIES provides exceptional flexibility and precision.

Main features:
• Cross and longitudinal creasing and cutting
• Production of standard FEFCO box types series (0200,0300, 0400,0600)
• Optional die-cutting,glue unit and flexographic printing
• Manual sheet feeding with optional automatic feeding
• Optional Dual and triple production capability (2–3 boxes per cycle) – MULTI PRODUCTION
• Compact dimensions and easy maintenance

The SEMI-AUTOMATIC DT-SERIES is the optimal solution for companies seeking quality, reliability, and cost-efficient box production – without the need for a fully automated system.

Automatic Machine – DT-AUTO
Smart automation for customized box production

The DT-AUTO automatic machine is a highly efficient solution for the production of cardboard boxes, dividers, inserts, and boxes with additional die-cuts.

The process includes automatic positioning of all tools (feeders, cutting knives, creasing wheels), with the option to expand with perforation tools, a gluing module, and flexographic printing in the 300 × 500 mm format.

Servo drives and automatic tool positioning enable rapid format changes and uninterrupted operation. The operator uses a touch-screen interface to enter basic parameters, while the system automatically positions the tools.

Its modular design allows for easy system expansion with additional functions such as automatic pallet stacking, HHS gluing system, or a printing unit.

The machine is fully compatible with all FEFCO standards and can process double-, triple-, and five-layer corrugated board.

Key features:

• Fully automatic tool positioning
• Servo control on all axes
• Modular design – easy system expansion
• Optional color flexographic printing
• Short job changeover time (< 60 seconds)

The DT-AUTO series combines top-level precision, reliability, and maximum productivity, with minimal operator involvement.
An ideal solution for companies seeking high efficiency and quality box production.

For the most demanding formats and continuous operation

The DT-HD PRO model represents a heavy-duty industrial version of boxmaker machines, designed for processing thick corrugated board up to 16 mm and large formats up to 2400 mm in width.

It combines a robust steel structure with a fully servo-driven creasing and cutting system, ensuring outstanding precision, reliability, and long-term performance.

Engineered for continuous 24/7 operation, the DT-HD PRO allows quick job changeovers, making it ideal for small and medium production runs with frequent format adjustments.

An advanced tool positioning system, based on FEFCO codes and box dimensions, minimizes setup time and reduces the risk of operator error.

Key Advantages

• Processes from E to AAA flute (3 to 7 layers)
• Maximum board thickness: 16 mm
• Automatic positioning of knives and creasing tools
• Servo control on all axes and independent units
• Rigid construction ensuring precise and stable operation
• Fast order changeover
• Integrated creasing correction system
• Compatible with all FEFCO box styles

The Heavy Duty DT-HD PRO is designed for the production of large-size boxes, heavy-duty packaging, and transport containers, offering the perfect balance of power, precision, and maximum flexibility.
